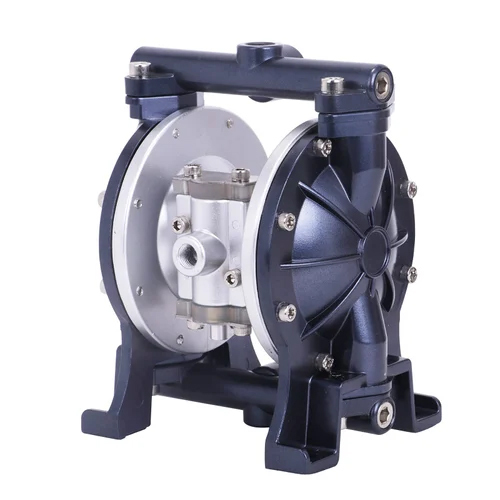

Graco Air Operated Double Diaphragm Pumps

Name: Graco Air Operated Double Diaphragm Pumps
Brand: APP PUMPS ENGINEERING COMPANY
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Graco Air Operated Double Diaphragm Pumps Specification

Working Temperature
Up to 66C (150F) depending on material compatibility

Mounting Type
Floor / Skid / Portable

Discharge Pressure
Up to 8.6 bar (125 psi)

Features
Dry-run capability, ease of maintenance, stall-free air valve, low pulsation, corrosion-resistant

Head Size
Up to 8.6 bar (125 psi) discharge

Control System
Pneumatic; compatible with external controllers & accessories

Voltage
Air Operated (No external electric voltage required)

Inlet/Outlet
1/4 to 3 NPT/BSP (threaded or flanged, as per model)

Max Suction
Up to 7.6 m (25 ft) dry lift

Flow Rate
Up to 1040 lpm (275 gpm)LPM

Noise Level
Typically 70-90 dB(A), depends on air exhaust system

Frequency
Not applicable (pneumatic)

Speed
Variable (regulated by air supply)

Theory
Reciprocating Pump

Caliber
Standard sizes: 1/4, 1/2, 1, 1-1/2, 2, 3

Material
Aluminum, Polypropylene, Stainless Steel, Acetal (varies by model)

Structure
Double Diaphragm

Power
Pneumatic (compressed air required)

Standard
ATEX compliant models available, ISO 9001 manufacturing

Fuel Type
Not applicable (air operated)

Pressure
Maximum 8.6 bar (125 psi)

Usage
Transfer of chemicals, solvents, slurries, inks, water, and corrosives

Application
Industrial, Chemical, Paint & Coating, Pharmaceutical, Wastewater

Suction Type
Positive Displacement / Self-Priming

Seals Type
PTFE, Santoprene, Buna-N, Viton (depends on model selection)

Priming
Self-priming

Pump Type
Air Operated Double Diaphragm Pump (AODD)

Capacity
Up to 275 GPM (1040 LPM)

Safety
ATEX Zone 1/2 and FDA compliant models available

Diaphragm Material Options
Santoprene, PTFE, Buna-N, Viton, EPDM

Weight
Varies by model and material; approx. 7 kg to 65 kg

Maximum Air Inlet Pressure
8.6 bar (125 psi)

Maintenance
Tool-less or quick access air valve design

Port Orientation
Horizontal or vertical ports based on pump series

Valve Type
Ball Valve or Flap Valve, model dependent

Solid Handling Capacity
Up to 6.4 mm (1/4 in), varies by model

Viscosity Handling
Up to 15,000 cps (centipoise), depending on configuration

Graco Air Operated Double Diaphragm Pumps Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Graco Air Operated Double Diaphragm Pumps

Discover rare performance with Graco Air Operated Double Diaphragm Pumps-heroic equipment built for supreme reliability across diverse industries. These customizable pumps cater to your toughest transfer demands, handling liquids with viscosities up to 15,000 cps and solid-laden fluids up to 6.4 mm. With a lofty range of diaphragm materials like PTFE, Viton, and Santoprene, Graco's AODD pumps offer exceptional chemical compatibility. Key features include dry-run capability, tool-less maintenance, and swift mounting, making these powerful solutions a rare deal for manufacturers, suppliers, and traders seeking safety, efficiency, and enduring value.

Reliable & Flexible Solution for Industrial Demands

Graco Air Operated Double Diaphragm Pumps provide a distinct advantage in industrial operations, offering dry-run capability and heroic performance in transferring chemicals, slurries, paints, and pharmaceuticals. Their customizable configurations and supreme corrosion-resistant materials ensure compatibility with applications in wastewater, chemical processing, and food-grade systems. Engineered for safe, efficient operation under ATEX and FDA compliance, these pumps elevate plant safety and productivity, making them ideal for any industry seeking dependable, versatile fluid handling solutions.

Robust Delivery, Certified Assurance & Valued Sampling

The supply ability for Graco Air Operated Double Diaphragm Pumps is consistently high, ensuring timely delivery for plant expansions or maintenance expenditures. Certified under ATEX and manufactured in ISO 9001 facilities, these pumps guarantee supreme valuation and compliance for international standards. Sample policies are available upon request, providing clients an opportunity to evaluate product fit before major expenditures are delivered. This process allows confident decisions backed by reliable certifications and industry-best quality assurances.

FAQ's of Graco Air Operated Double Diaphragm Pumps:

Q: How do Graco Air Operated Double Diaphragm Pumps benefit industrial facilities?

A: Graco AODD pumps offer supreme reliability, dry-run capability, and quick maintenance, reducing downtime and ensuring consistent operation in demanding industrial environments.

Q: What materials and media can these pumps handle efficiently?

A: They handle a rare range of media, from chemicals and solvents to slurries and inks, thanks to heroic diaphragm material options like Santoprene, PTFE, Buna-N, and Viton, as well as robust solid handling capacities.

Q: When is it suitable to select a ball valve versus a flap valve model?

A: Ball valve models excel with fluids low in solids, while flap valve models are ideal for slurries or larger solids. The selection depends on your application's specific fluid characteristics.

Q: Where can Graco AODD pumps be installed in a facility?

A: Their flexible design supports floor, skid, or portable mounting, making them suitable for a variety of industrial settings, from centralized plants to remote operation sites.

Q: What is the process of maintenance for these pumps?

A: Graco pumps feature a tool-less or quick-access air valve design, enabling easy, swift maintenance and reducing downtime for plant operators.

Q: How does the compliance certification of these pumps impact usage?

A: With ATEX certification and availability of FDA-compliant models, users can ensure that installations meet stringent safety and quality requirements in sensitive plant environments.
